Rear Console Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Cup holder (without wireless charger (Qi)) (See CUP HOLDER REMOVAL/INSTALLATION .)
    6. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

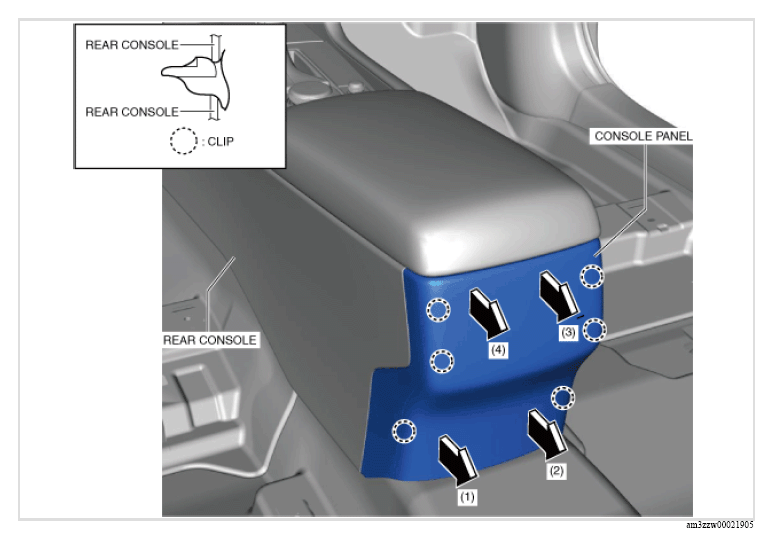

  3. Move the console panel in the order of arrows (1), (2), (3), and (4) shown in the figure below, and detach the clips.
    G13179495Courtesy of MAZDA MOTORS CORP.

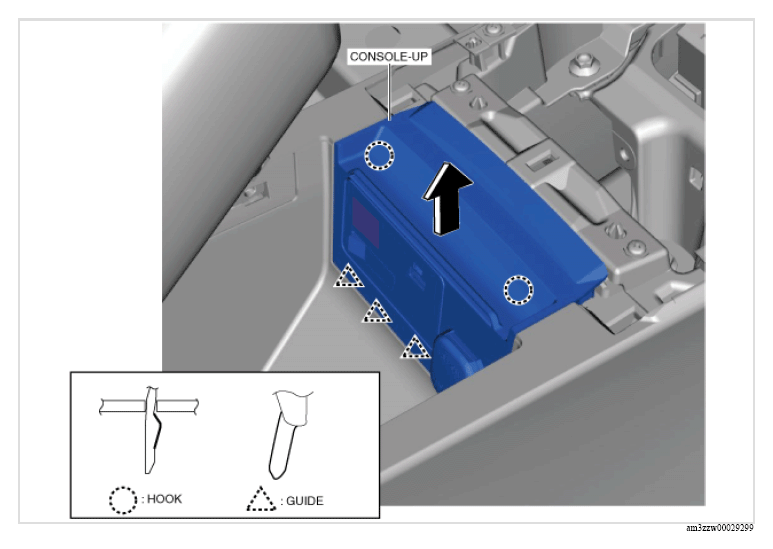

  4. Move the console-up in the direction of the arrow shown in the figure below and remove it while detaching the hooks and guides.
    G13179496Courtesy of MAZDA MOTORS CORP.

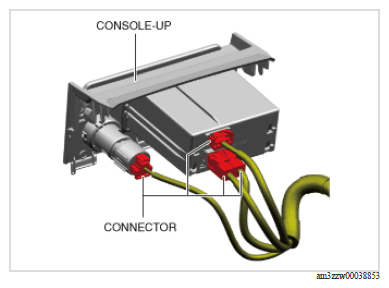

  5. Disconnect the connectors.
    G16798286Courtesy of MAZDA MOTORS CORP.

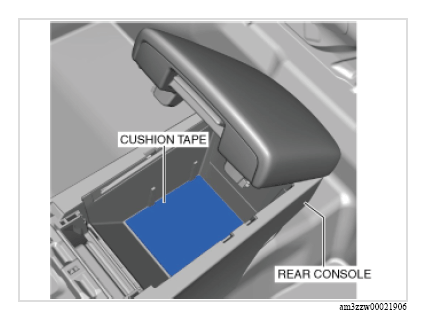

  6. Remove the cushion tape.
    G13179498Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolts.

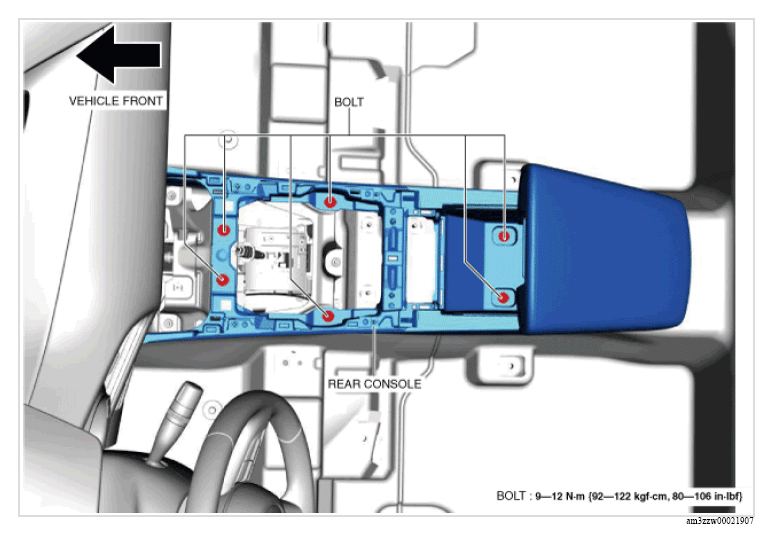

    Fig 1: Rear Console Bolts With Torque Specifications
    G13179499Courtesy of MAZDA MOTORS CORP.
  8. Remove the bolts.

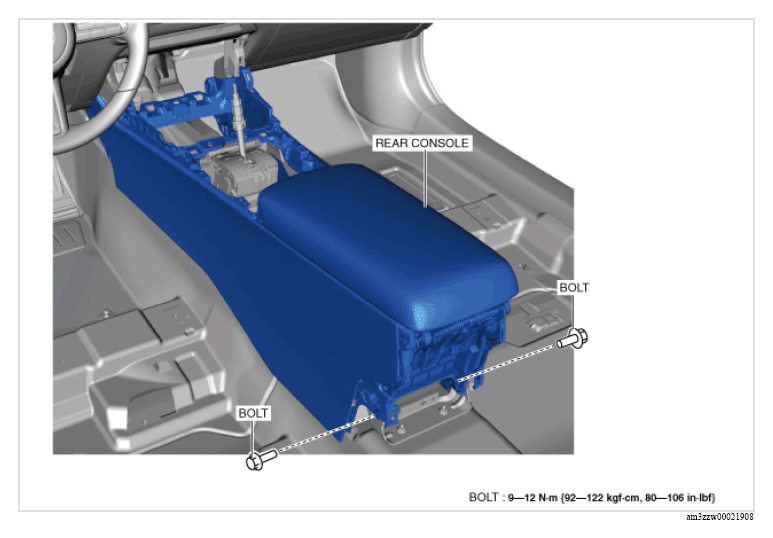

    Fig 2: Rear Console Bolts With Torque Specifications
    G13179500Courtesy of MAZDA MOTORS CORP.

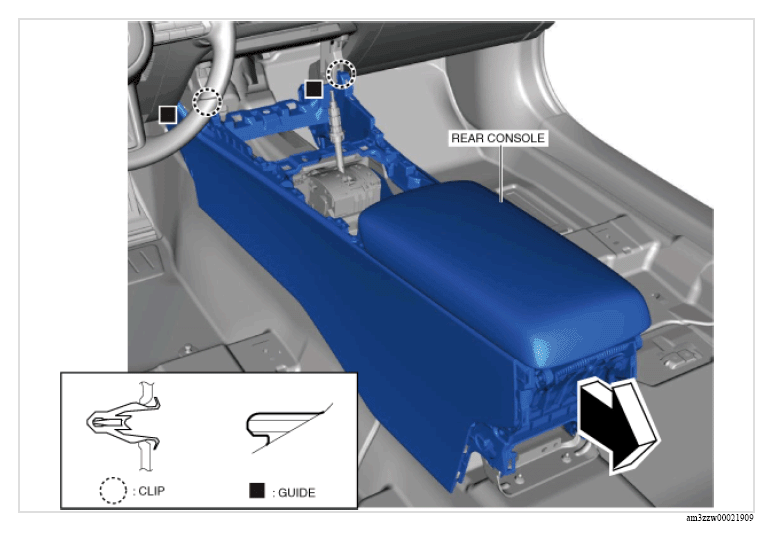

  9. Move the rear console in the direction of the arrow shown in the figure below, detach the clips and guides from the center lower panel, and remove the rear console.
    G13179501Courtesy of MAZDA MOTORS CORP.
  10. When removing the rear console bracket No. 1, perform the following procedure:
    1. Remove the wiring harness clips.

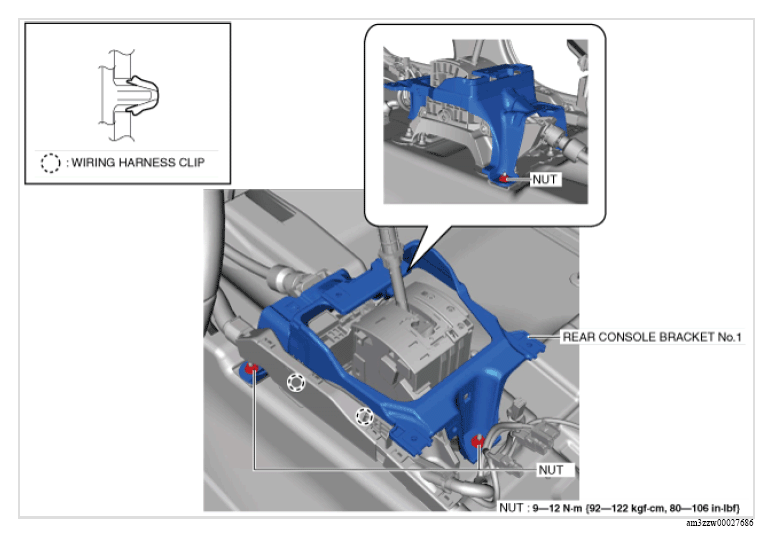

      Fig 3: Rear Console Bracket No. 1 Nuts With Torque Specifications
      G13179502Courtesy of MAZDA MOTORS CORP.
    2. Remove the nuts.
    3. Remove the rear console bracket No. 1.
  11. Install in the reverse order of removal.
