Front Door Trim Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
4. Power window subswitch (to remove from passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

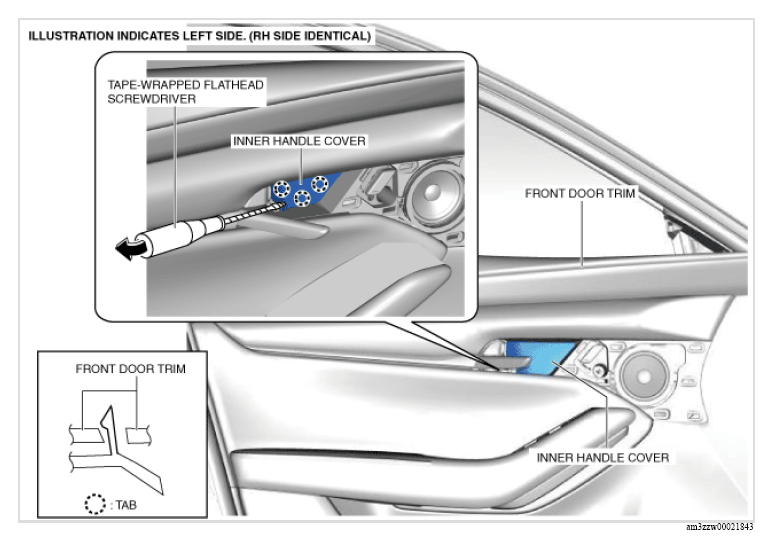

Insert a tape-wrapped flathead screwdriver into the position shown in the figure below, move it in the direction of the arrow and remove the inner handle cover while detaching the tabs.

Courtesy of MAZDA MOTORS CORP.

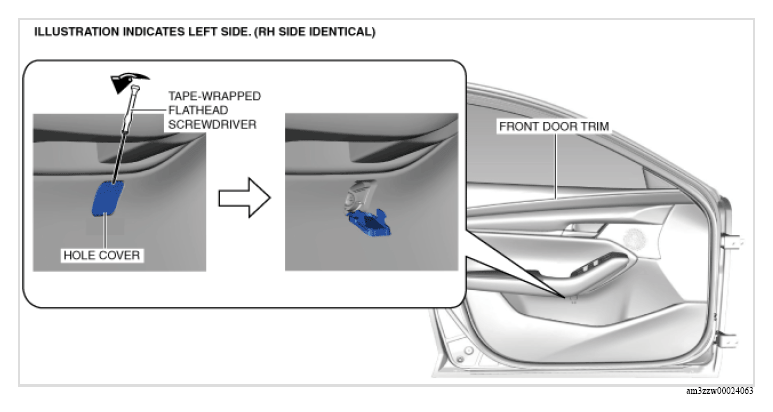

Insert a tape-wrapped flathead screwdriver into the position shown in the figure below, move it in the direction of the arrow and remove the hole cover.

Courtesy of MAZDA MOTORS CORP.

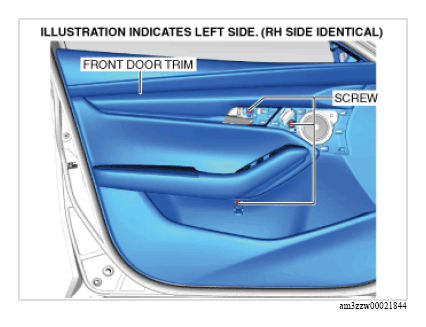

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

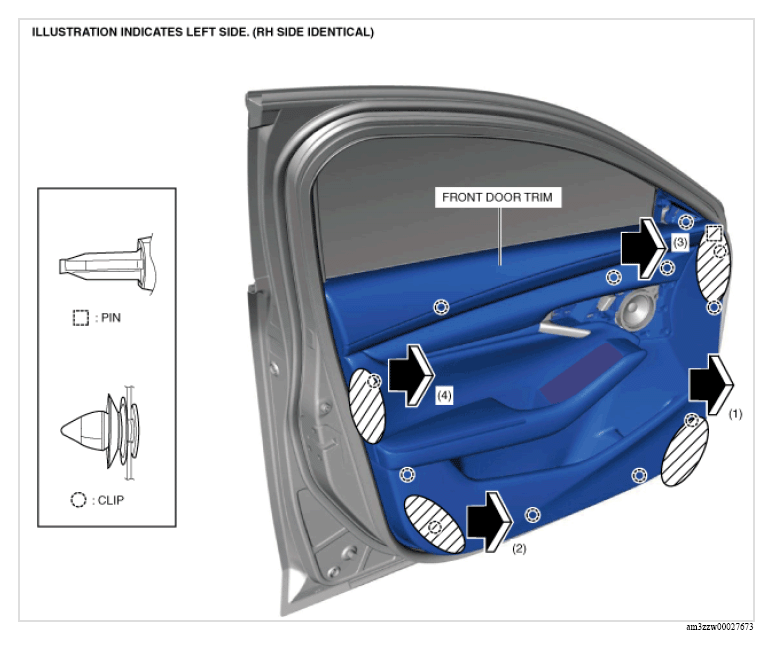

Hold each shaded area and pull the front door trim in the order of arrows (1), (2), (3), and (4), and detach the clips and pin.

Courtesy of MAZDA MOTORS CORP.

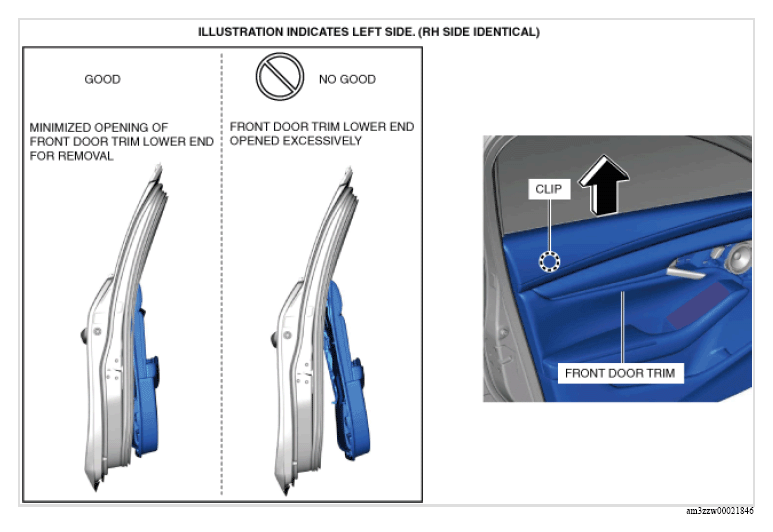

Lift up the front door trim in the direction of the arrow shown in the figure below being careful not to open the lower end of the front door trim excessively, and remove the front door trim from the clip.

Courtesy of MAZDA MOTORS CORP.
Remove the front door trim.

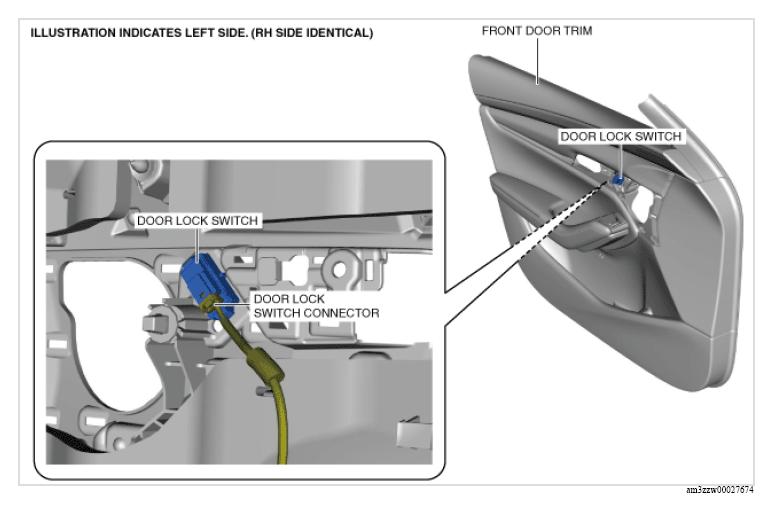

Disconnect the door lock switch connector.

Courtesy of MAZDA MOTORS CORP.

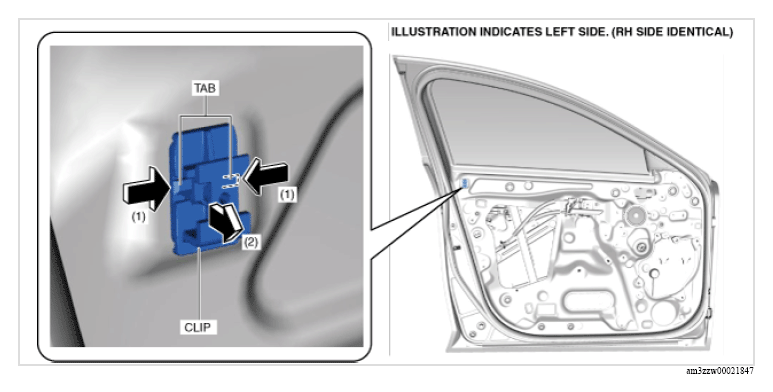

While pressing the tabs of the clip in the directions of arrows (1) shown in the figure below, pull the clip in the direction of arrow (2) to remove the clip from the front door.

Courtesy of MAZDA MOTORS CORP.

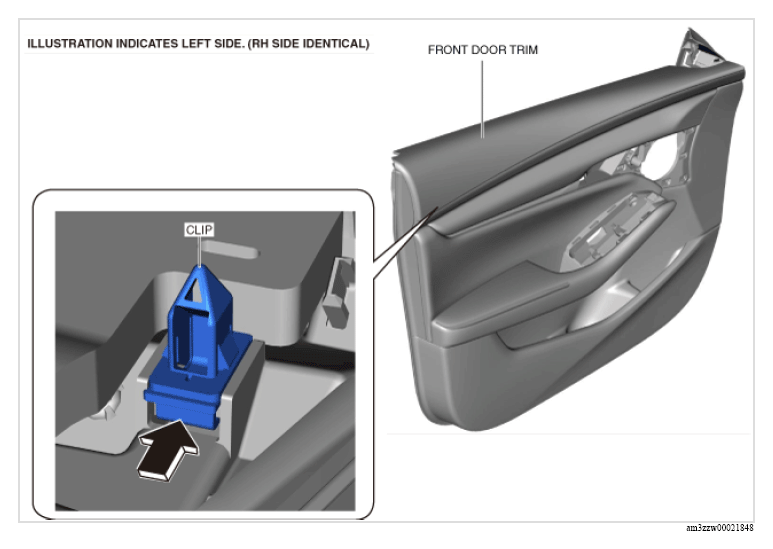

Install the clip removed in Step 10 to the front door trim.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
