B-Pillar Upper Trim Removal/Installation

  1. Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.

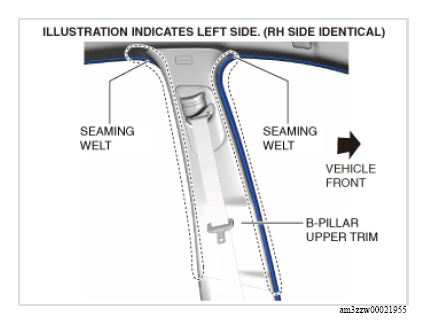

    G13179349Courtesy of MAZDA MOTORS CORP.
  3. Move the front seat belt adjuster in the direction of the arrow shown in the figure below and place it at the lowest position.

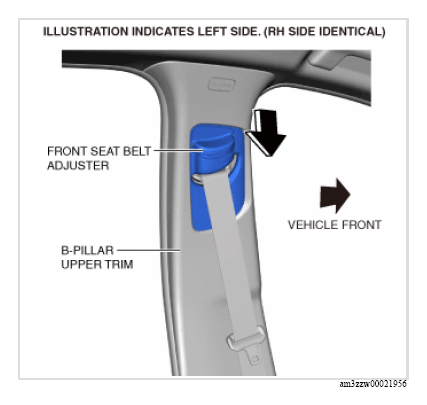

    G13179350Courtesy of MAZDA MOTORS CORP.
  4. Insert a tape-wrapped flathead screwdriver into the position shown in the figure below, move it in the direction of the arrow and remove the hole cover.

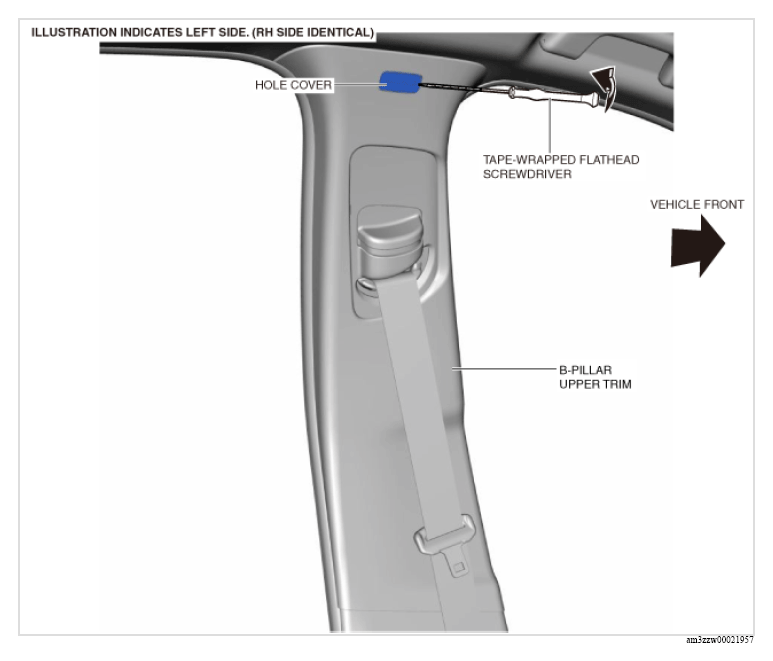

    G13179351Courtesy of MAZDA MOTORS CORP.
  5. Remove the screw.

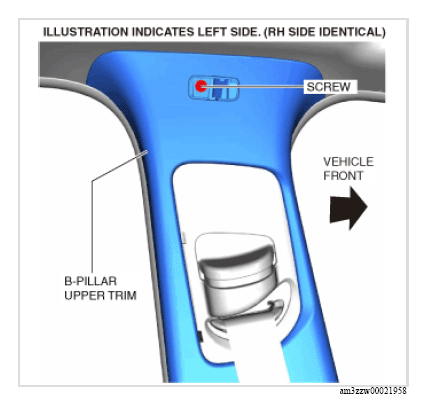

    G13179352Courtesy of MAZDA MOTORS CORP.
  6. Grasp the shaded areas shown in the figure below, and move the B-pillar upper trim in the order of arrows (1), (2) shown in the figure below, and remove it while detaching the clips, pins A, pins B, pins C, tabs, and hooks.

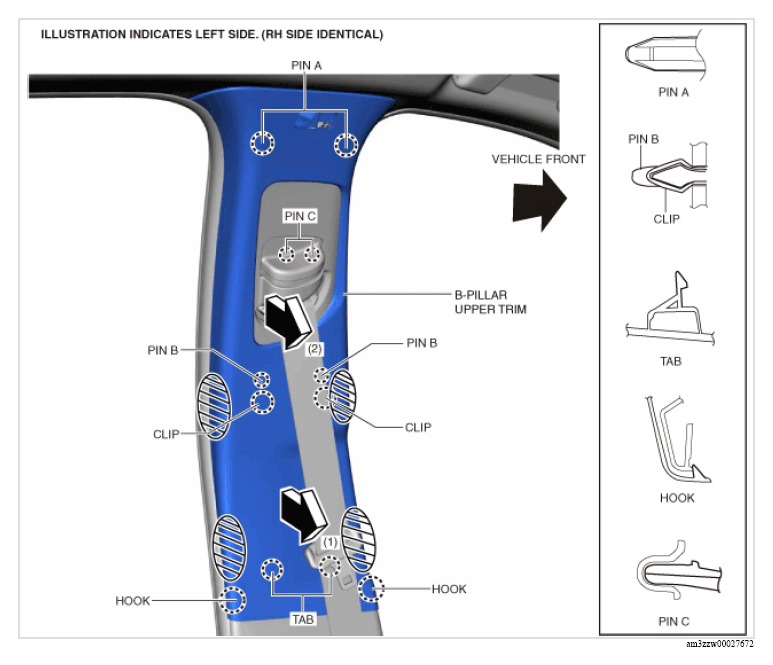

    G13179353Courtesy of MAZDA MOTORS CORP.
  7. Remove the B-pillar upper trim from the front seat belt.
  8. Install in the reverse order of removal.
