FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.

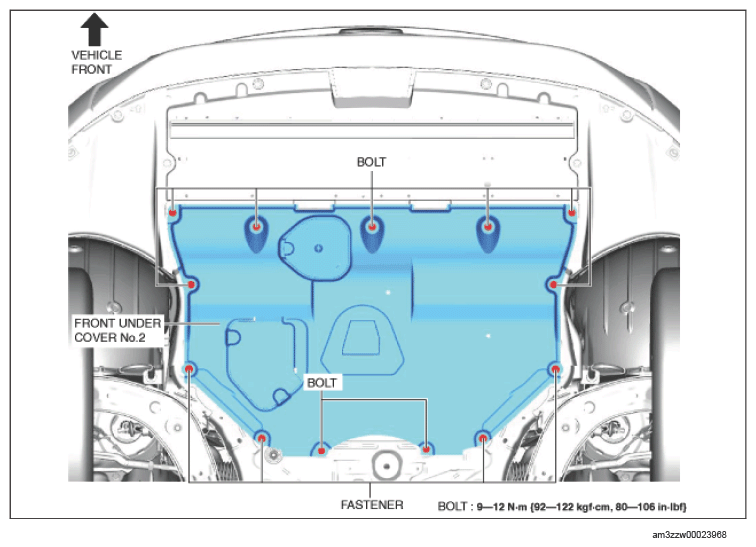

    Fig 1: Front Under Cover No. 2 Bolts With Torque Specifications
    G14583764Courtesy of MAZDA MOTORS CORP.
  3. Remove the front under cover No. 2.
  4. Install in the reverse order of removal.
