DTC B1A22-13: Dab Antenna Amplifier Signal Circuit Malfunction: 4SD: Outline
DTC B1A22-13: (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE (4SD)
| System malfunction location |

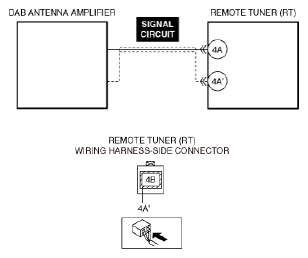

DAB antenna amplifier signal circuit malfunction |
| Detection condition |
- The remote tuner (RT) detects an open circuit in the DAB antenna amplifier signal circuit or a disconnection with the DAB antenna amplifier.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Remote tuner (RT) connector or terminal malfunction
- DAB antenna amplifier feeder malfunction
- Open circuit in DAB antenna amplifier signal circuit
- DAB antenna amplifier malfunction
- Remote tuner (RT) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
