DTC B1A11-11: Rear Door Speaker (LH) Audio Output Circuit Malfunction: Outline
DTC B1A11-11: (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |

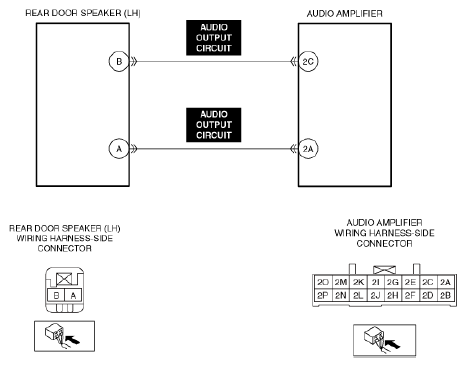

Rear door speaker (LH) audio output circuit malfunction |
| Detection condition |
- The audio amplifier detects a short to ground in the rear door speaker (LH) audio output circuit for 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Rear door speaker (LH) connector or terminal malfunction
- Audio amplifier connector or terminal malfunction
- Rear door speaker (LH) malfunction
- Short to ground in rear door speaker (LH) audio output circuit
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
