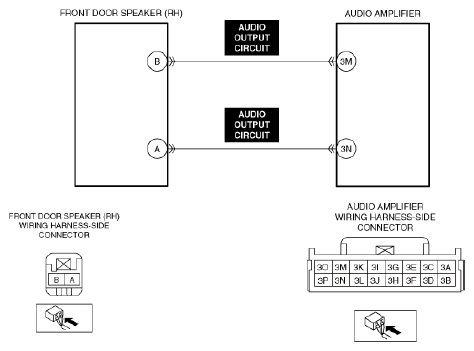

DTC B1A10-11: Front Door Speaker (RH) Audio Output Circuit Malfunction: Outline
DTC B1A10-11: (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Front door speaker (RH) audio output circuit malfunction |
| Detection condition |
- The audio amplifier detects a short to ground in the front door speaker (RH) audio output circuit for 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front door speaker (RH) connector or terminal malfunction
- Audio amplifier connector or terminal malfunction
- Front door speaker (RH) malfunction
- Short to ground in front door speaker (RH) audio output circuit
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
