With Bose®: Outline
DTC B1A08-2B: (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE (WITH BOSE®)
| System malfunction location |

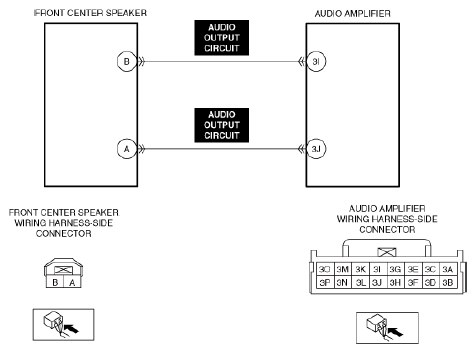

Front center speaker audio output circuit malfunction |
| Detection condition |
- The audio amplifier detects a short circuit between the front center speaker audio output circuits for 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front center speaker connector or terminal malfunction
- Audio amplifier connector or terminal malfunction
- Front center speaker malfunction
- Short circuit between front center speaker audio output circuits
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
