With Bose®: Outline

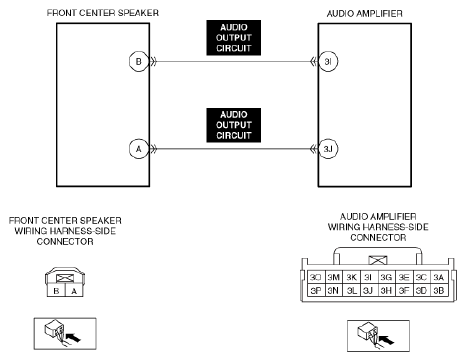

DTC B1A08-11: (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE (WITH BOSE®)
| System malfunction location |
Front center speaker audio output circuit malfunction |
| Detection condition |
- The audio amplifier detects a short to ground in the front center speaker audio output circuit for 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front center speaker connector or terminal malfunction
- Audio amplifier connector or terminal malfunction
- Front center speaker malfunction
- Short to ground in front center speaker audio output circuit
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
