With Bose®: Outline
DTC B1A07-2B: (CONNECTIVITY MASTER UNIT) DETECTION CONDITION AND POSSIBLE CAUSE (WITH BOSE®)
| System malfunction location |

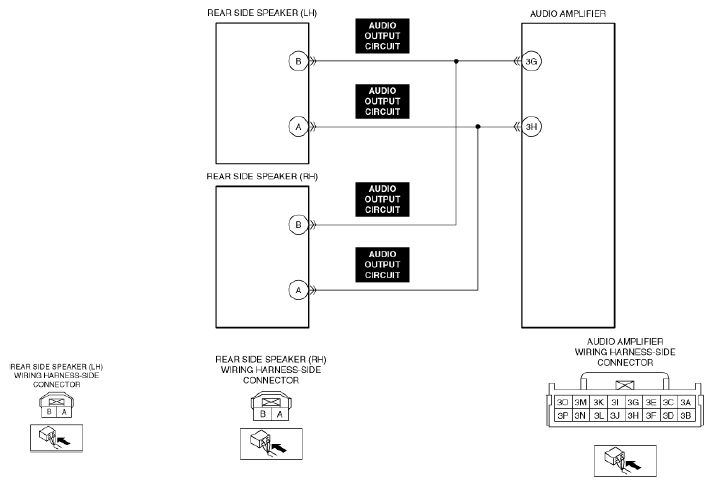

Rear side speaker (LH) audio output circuit or rear side speaker (RH) audio output circuit malfunction |
| Detection condition |
- The audio amplifier detects a short circuit between the rear side speaker (LH) audio output circuits or rear side speaker (RH) audio output circuits for 30 s.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Rear side speaker (LH) connector or terminal malfunction
- Rear side speaker (RH) connector or terminal malfunction
- Audio amplifier connector or terminal malfunction
- Rear side speaker (LH) malfunction
- Rear side speaker (RH) malfunction
- Short circuit between rear side speaker (LH) audio output circuits or rear side speaker (RH) audio output circuits
- Audio amplifier malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
