Microphone Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)

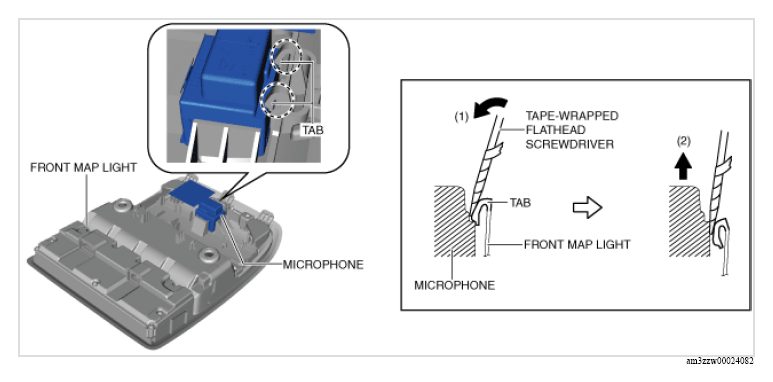

  3. While pressing the tabs of the microphone in the direction of arrow (1) shown in the figure below using a tape-wrapped flathead screwdriver, pull the microphone in the direction of arrow (2) shown in the figure below to detach the tabs of the microphone from the front map light.
    G13179833Courtesy of MAZDA MOTORS CORP.

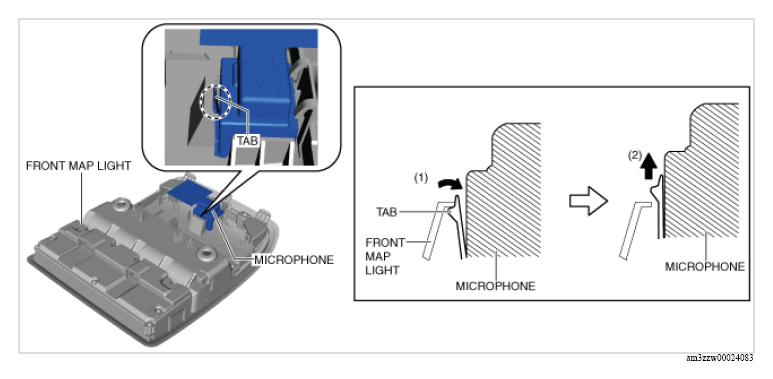

  4. While pulling the tabs of the microphone in the direction of arrow (1) shown in the figure below, pull the microphone in the direction of arrow (2) shown in the figure below to detach the tab of the microphone from the front map light.
    G13179834Courtesy of MAZDA MOTORS CORP.
  5. Remove the microphone.
  6. Install in the reverse order of removal.
