Front Center Speaker Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)

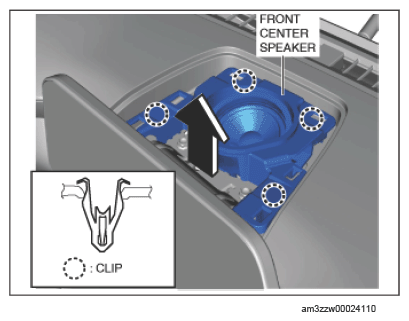

  3. Move the front center speaker in the direction of the arrow shown in the figure below while detaching the clips.
    G14584340Courtesy of MAZDA MOTORS CORP.

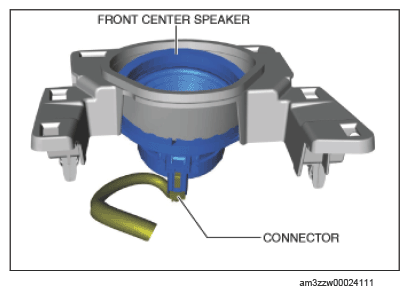

  4. Disconnect the connector.
    G14584341Courtesy of MAZDA MOTORS CORP.

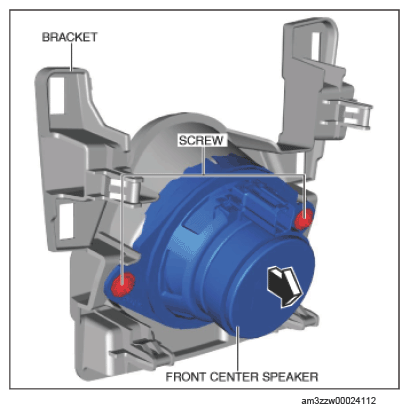

  5. Remove the screws.
    G14584342Courtesy of MAZDA MOTORS CORP.
  6. Remove the front center speaker in the direction of the arrow shown in the figure below.
  7. Install in the reverse order of removal.
