Global Positioning System (GPS) Antenna Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
- Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
- Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

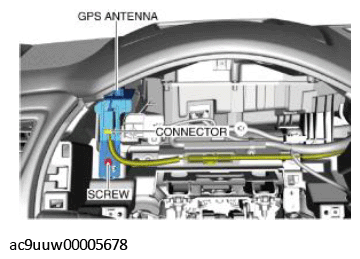

- Remove the screw.
- Disconnect the connector.
- Remove the GPS antenna.
- Install in the reverse order of removal.
