DTC C2006-74: Electric Parking Brake Motor Gear Unit (LH) Power Transmission Impossible (Spin) [Electric Parking Brake Control Module]: Notes
DTC C2006:74 (ELECTRIC PARKING BRAKE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Electric parking brake motor gear unit (LH) power transmission impossible (spin) |
| Detection condition |
- Electric parking brake control module detects an electric parking brake motor gear unit (LH) power transmission impossible (spin).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electric parking brake motor gear unit (LH) connector or terminal malfunction
- Electric parking brake control module connector or terminal malfunction

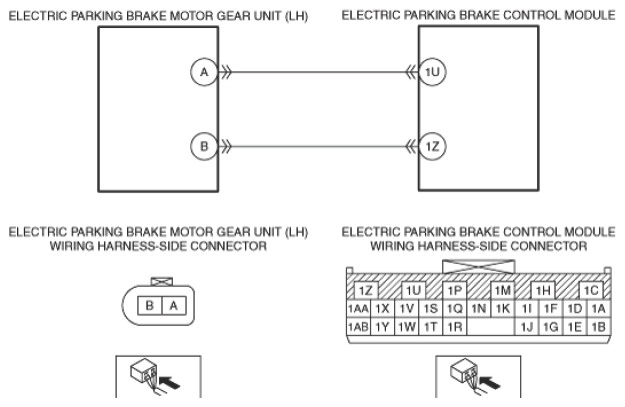

- Open circuit in wiring harness between the following terminals:
- Electric parking brake motor gear unit (LH) terminal A-Electric parking brake control module terminal 1U
- Electric parking brake motor gear unit (LH) terminal B-Electric parking brake control module terminal 1Z
- Electric parking brake motor gear unit (LH) malfunction
- Electric parking brake control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
