Meter Hood Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(US)] .)
    6. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    7. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

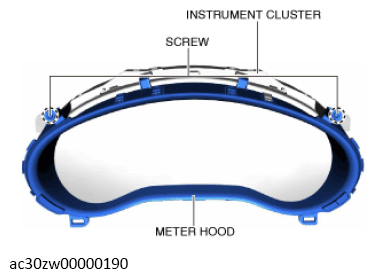

  3. Remove the screws.
    G13560771Courtesy of MAZDA MOTORS CORP.

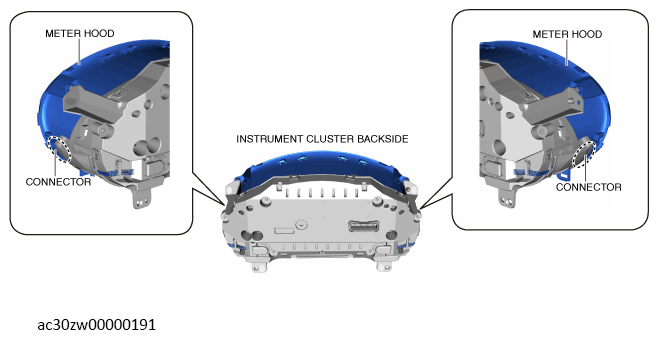

  4. Disconnect the connectors.
    G13560772Courtesy of MAZDA MOTORS CORP.

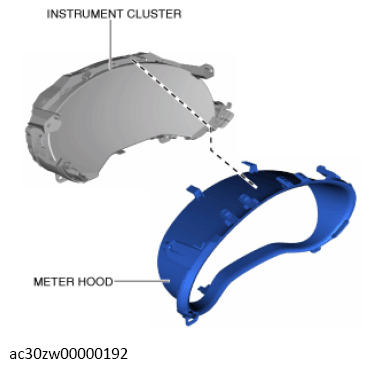

  5. Remove the meter hood from the instrument cluster.
    G13560773Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
