Upper Face Removal/Installation

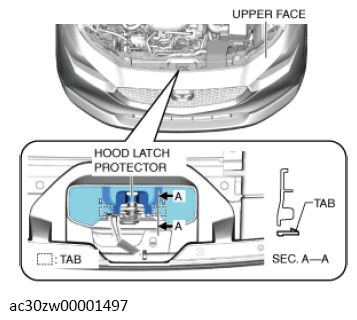

  1. Detach the hood latch protector tabs from the hood latch and remove the hood latch protector.
    G13560608Courtesy of MAZDA MOTORS CORP.
  2. Open the engine cover. (SKYACTIV-X 2.0)

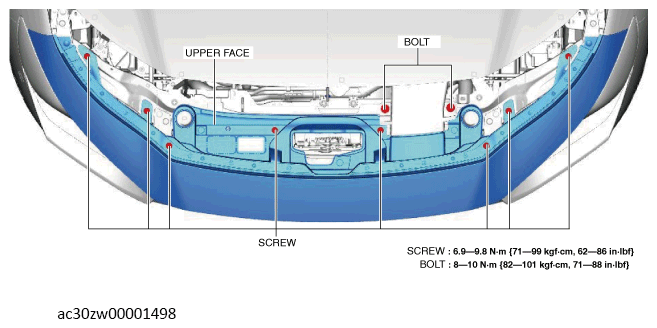

  3. Remove the bolts and screws.
    Fig 1: Upper Face, Bolts And Screws With Torque Specification
    G13560609Courtesy of MAZDA MOTORS CORP.

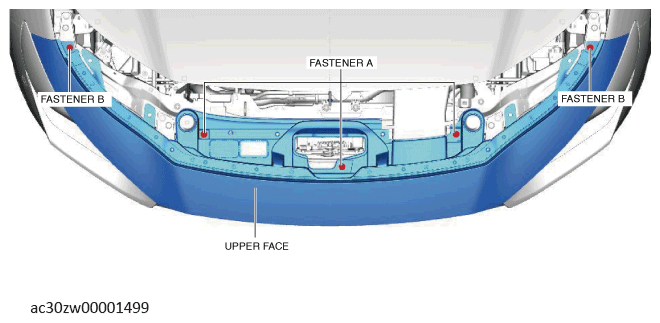

  4. Remove the fasteners A and B.
    G13560610Courtesy of MAZDA MOTORS CORP.

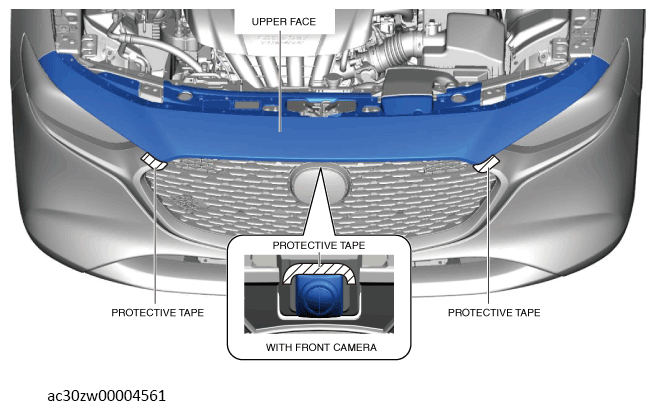

  5. To prevent scratches or damage, apply protective tape to the positions shown in the figure.
    G13560611Courtesy of MAZDA MOTORS CORP.

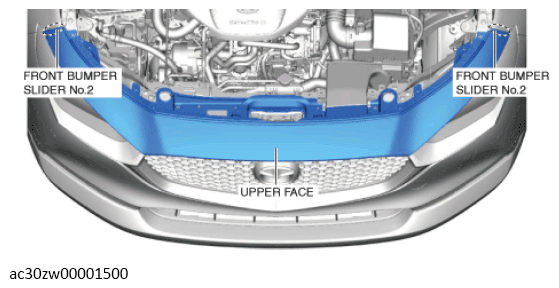

  6. Detach the upper face from the front bumper slider No. 2.
    G13560612Courtesy of MAZDA MOTORS CORP.

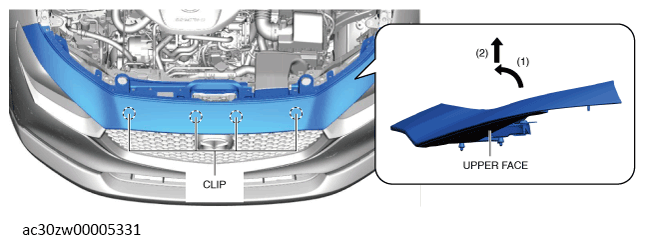

  7. Move the upper fascia in the direction of arrow (1) shown in the figure and detach the clips from the front bumper.
    G14491713Courtesy of MAZDA MOTORS CORP.
  8. Remove the upper fascia in the direction of arrow (2) shown in the figure.
  9. Install in the reverse order of removal.
