Rear Over Fender Removal/Installation

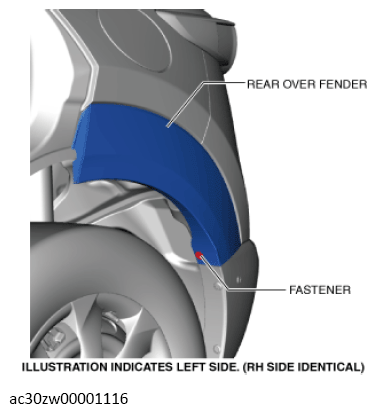

  1. Remove the fastener.
    G13559906Courtesy of MAZDA MOTORS CORP.

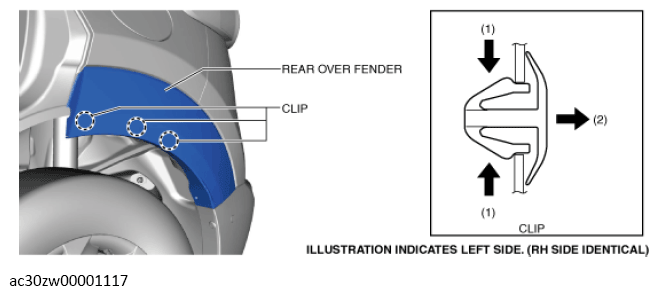

  2. While pressing the clip tabs in the directions of arrows (1) shown in the figure and moving the rear over fender in the direction of arrow (2), detach the clips from the rear over fender bracket.
    G13559907Courtesy of MAZDA MOTORS CORP.

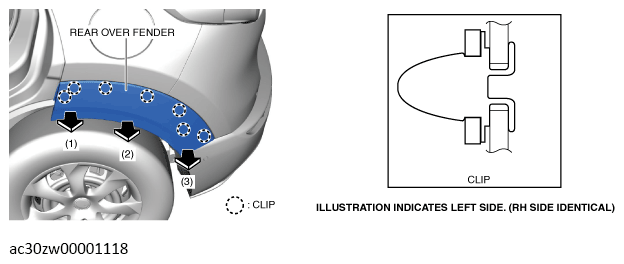

  3. While pulling the rear over fender and detaching the clips in the order of arrows (1), (2), and (3) shown in the figure, remove the rear over fender.
    G13559908Courtesy of MAZDA MOTORS CORP.
  4. Remove the clips remaining on the vehicle body and install them to the rear over fender.
  5. Install in the reverse order of removal.
WARNING:
  • When installing the rear over fender, verify that clips are not damaged, if they are damaged, replace them with new ones. Otherwise, the rear over fender may fall off while the vehicle is being driven, leading to a serious accident.
