Rear Speaker Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    3. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

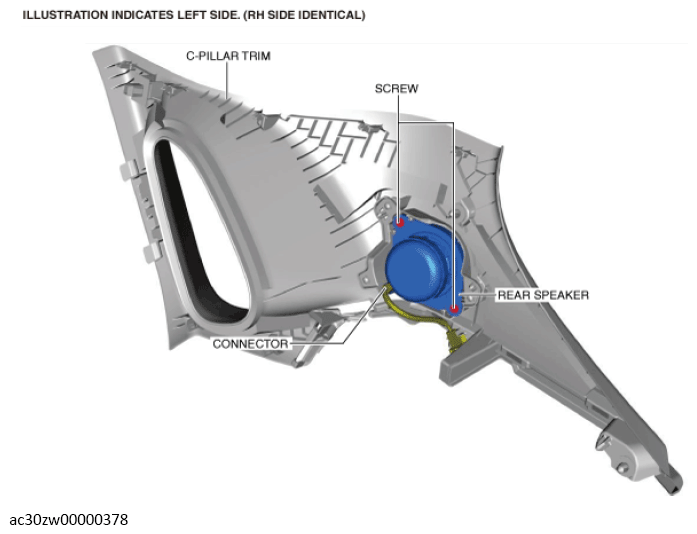

  3. Remove the screws.
    G13750714Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the rear speaker.
  6. Install in the reverse order of removal.
