Notification And Warning Speaker (Front)/Notification And Warning Speaker (Rear) Does Not Activate: Outline
NOTIFICATION AND WARNING SPEAKER (FRONT)/NOTIFICATION AND WARNING SPEAKER (REAR) DOES NOT ACTIVATE (INSTRUMENTATION/DRIVER INFO.) DESCRIPTION AND POSSIBLE CAUSE
| Description |
- The notification and warning speaker (front)/notification and warning speaker (rear), which notifies/warns of malfunctions in each system, does not activate.
NOTE:
- For systems related to the notification and warning speaker (front)/notification and warning speaker (rear), refer to
[NOTIFICATION AND WARNING SPEAKER] in the service highlights/technical guide.
|

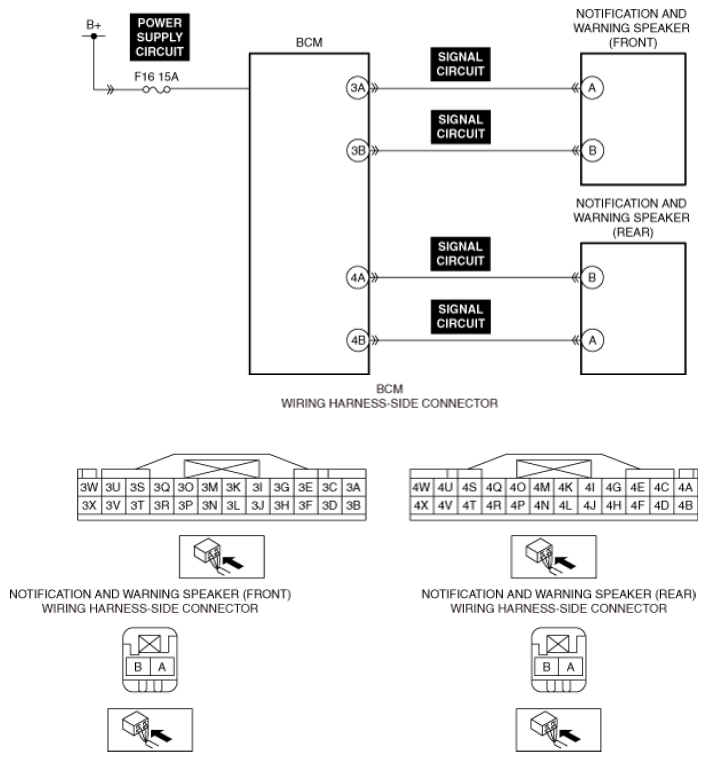

| Possible cause |
- Connector or terminal malfunction of the following parts:
- Notification and warning speaker
- Body control module (BCM)
- Open circuit in notification and warning speaker signal circuit
- Short circuit to ground in notification and warning speaker signal circuit
- F16 15 A fuse malfunction
- Short circuit to ground in power supply circuit of notification and warning speaker
- Open circuit in power supply circuit of notification and warning speaker
- Notification and warning speaker malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
