Mazda EMERGENCY ASSISTANCE SPEAKER/MICROPHONE REMOVAL/INSTALLATION

  1. Disconnect the negative battery terminal.
  2. Remove the front map light.

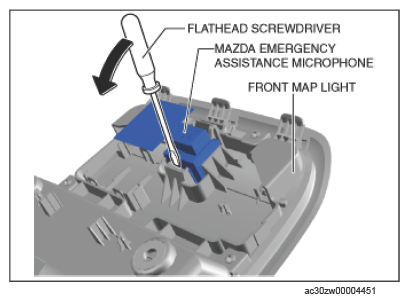

  3. Insert the flathead screwdriver between the front map light and the Mazda EMERGENCY ASSISTANCE microphone.
    G15658765Courtesy of MAZDA MOTORS CORP.
  4. Remove the Mazda EMERGENCY ASSISTANCE microphone.
  5. Install the reverse order of removal.
