TCM Removal/Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not drop or apply a shock to the TCM. Replace the TCM if it has been dropped or received an impact.
  • Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

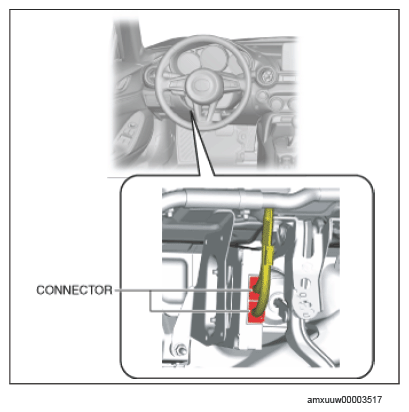

  2. Disconnect the connectors.
    G14589421Courtesy of MAZDA MOTORS CORP.
  3. Remove the TCM.

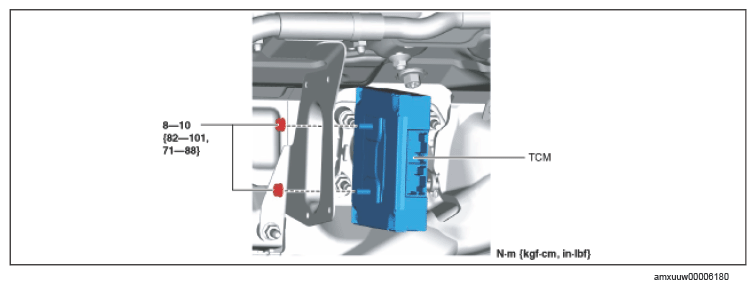

    Fig 1: TCM Bolts With Torque Specification
    G14589422Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Perform the "Initial Learning" (TCM replacement). (See INITIAL LEARNING PROCEDURE .)
