TCM Inspection: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • The TCM terminal voltage can vary with conditions when measuring and changes due to age deterioration on the vehicle, causing false diagnosis. Therefore a comprehensive inspection of the input and output systems, and the TCM is necessary to determine where the malfunction occurs.

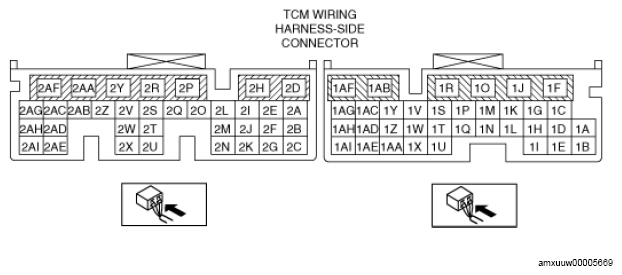

  1. Measure the terminal voltage of the TCM using a tester.
G14589411Courtesy of MAZDA MOTORS CORP.
