Shift Solenoid G Control (-)

WARNING: This page is about a different variant/trim than selected.

TCM terminal: 2L

Courtesy of MAZDA MOTORS CORP.

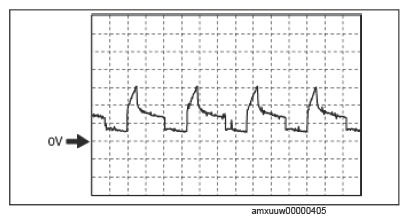

Oscilloscope setting: 50 mV/DIV (Y) 1ms/DIV (X)
Measuring condition: M position 1GR
