Shift Solenoid G Control (+)

WARNING: This page is about a different variant/trim than selected.

TCM terminal: 2Y

Courtesy of MAZDA MOTORS CORP.

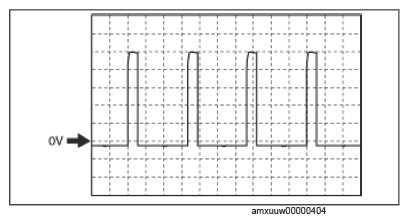

Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
Measuring condition: M position 1GR
