Line Pressure Control Solenoid Control (+)

WARNING: This page is about a different variant/trim than selected.

TCM terminal: 2R

Courtesy of MAZDA MOTORS CORP.

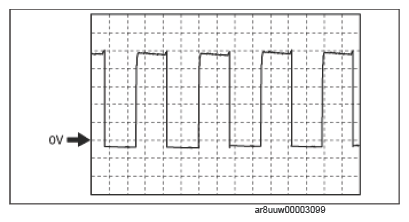

Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
Measuring condition: P, N position, Idle
