Oil Pipe No. 2 Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Remove the oil pipe No. 2.

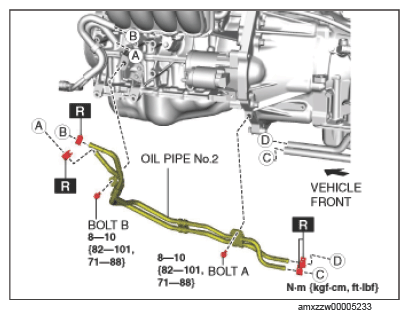

Fig 1: Oil Pipe No. 2 Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the oil pipe No. 2 using the following procedure:
1. Temporarily tighten bolt A and B.
2. Completely tighten bolts A and B in the order of A and B.
3. Connect the oil hoses. (See OIL HOSE INSTALLATION NOTE .)
Inspect for oil leakage from the oil pipes and oil hoses.
Inspect the ATF level and condition. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .)
