Drive Plate Installation Bolts Removal Note
WARNING: This page is about a different variant/trim than selected.
- Set the SST against the drive plate.
Courtesy of MAZDA MOTORS CORP.

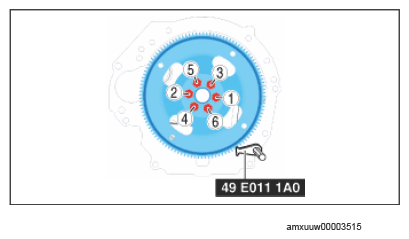

- Loosen the drive plate installation bolts uniformly in two or three steps in the order shown in the illustration, then remove the bolts and the drive plate.
