Drive Plate Installation Bolts Installation Note

WARNING: This page is about a different variant/trim than selected.

Set the SST against the drive plate.
Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the illustration.

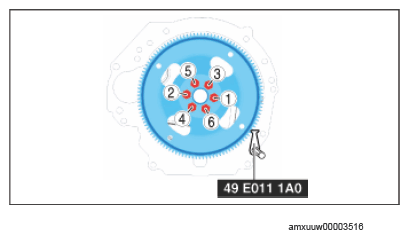

Fig 1: Drive Plate Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

108-116 N.m {11. 1-11.8 kgf.m, 80-85 ft.lbf}
