Transmission Mounting Bolt (Lower Side) Removal Note

WARNING: This page is about a different variant/trim than selected.

WARNING:

Remove the transmission carefully, holding it steady. If the transmission falls it could be damaged or cause injury.

CAUTION:

To prevent the torque converter and transmission from separating, remove the transmission without tilting it toward the torque converter.

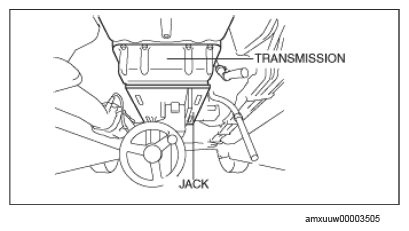

Support the transmission on a jack.

Courtesy of MAZDA MOTORS CORP.
Remove the transmission mounting bolts (lower side).
Remove the transmission component.
