Using The Automatic Transmission Warning Light

WARNING: This page is about a different variant/trim than selected.

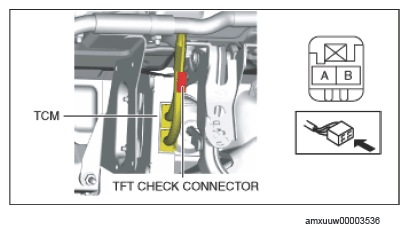

  1. Short the TFT check connector terminal A and B of the TCM.
    G14589270Courtesy of MAZDA MOTORS CORP.
  2. Perform the following operations to activate the control for the oil level adjustment.
    • Continue the shifting operation from N to D, D to N within 1.5 s until the automatic transmission warning light turns on.
      NOTE:
      • When adjusting the ATF level, refer to the following chart and verify the specified ATF temperature (57.5-62.5°C {136-144°F}).
