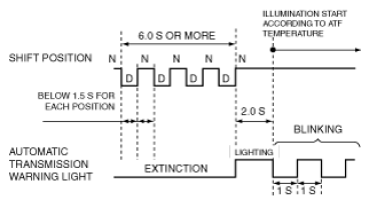

Automatic Transmission Warning Light Illumination Chart For ATF Level Adjustment
WARNING: This page is about a different variant/trim than selected.
| ATF condition | Time chart |
|---|---|
ATF Temperature below 57.5°C {136°F}
|
|
| ATF Temperature 57.5-62.5°C {136-144°F} ATF temperature is same ATF level adjustable temperature. |
|
| ATF Temperature above 62.5°C {145°F} ATF temperature is higher than ATF level adjustable temperature. |
