ATF Level Inspection

WARNING: This page is about a different variant/trim than selected.

CAUTION:

The ATF level cannot be adjusted correctly if the ATF temperature is not within a normal range (57.5-62.5°C {136-144°F}). Always perform the servicing according to the adjustment procedure.
Remaining ATF may drip from the overflow tube even when the ATF level is less than the specified value, therefore careful determination is required.

NOTE:

An overflow-type SJ6A-EL automatic transmission has been adopted with an overflow tube installed to the oil pan for inspection of the ATF level. Therefore, no dipstick has been equipped.

Courtesy of MAZDA MOTORS CORP.

Lift up the vehicle.

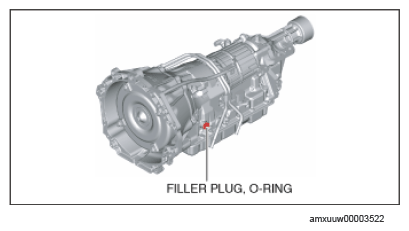

Remove the filler plug and O-ring.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not mistake the overflow plug for the drain plug.

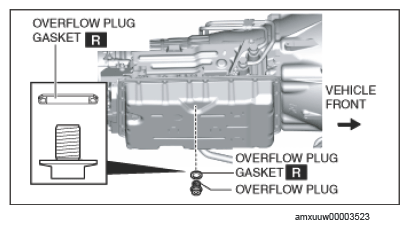

Remove the overflow plug and the overflow plug gasket.

Courtesy of MAZDA MOTORS CORP.

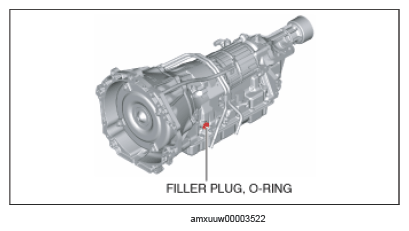

Fill with ATF from the filler plug hole until it starts flowing from the overflow orifice.

ATF type	Service	Supplemental ATF amount (approx. quantity)
Mazda Genuine JWS3309	Procedure including ATF draining Transmission replacement Torque converter replacement Oil cooler replacement Control valve body replacement TFT sensor replacement	Fill ATF to the specified amount (approx. quantity: 7.2 L {7.6 US qt, 6.3 Imp qt})
Mazda Genuine JWS3309	Procedure without ATF draining Oil seal (extension housing) replacement Fixing oil leakage or stains	Add small amount of ATF

Coat a new O-ring with ATF, and install it to the filler plug.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- Replace the O-ring if it has malfunction.
Tightening torque

24-54 N.m {2.5-5.5 kgf.m, 18-39 ft.lbf}
Temporarily tighten the overflow plug.
Start the engine and warm it up by idling to increase the ATF temperature.
NOTE:
- Perform the following procedure quickly, otherwise, the ATF temperature will exceed the proper range.
Shift to all positions, from the P position through the D position, taking 2 s or more for each position, and after repeating the procedure two times, shift to the P position again.
Verify that the ATF temperature is in the proper range (57.5-62.5°C {136-144°F}). (See ATF Temperature Verification .)

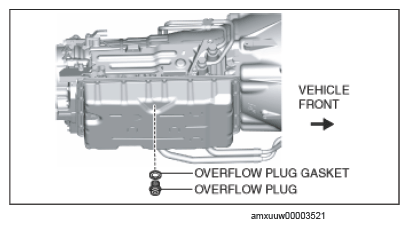

Remove the overflow plug and verify that the ATF is flowing from the overflow orifice with the transmission in park and engine idling.

Courtesy of MAZDA MOTORS CORP.
- If there is no ATF flowing, install the overflow plug after the engine is stopped, refill with ATF from the filler plug hole, and repeat the procedure from Step 7.
Wait until the ATF starts dripping from the overflow plug.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Always install the overflow plug gasket in the correct direction as shown in the illustration.
If ATF dripping is verified, install a new overflow plug gasket and overflow plug.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

18-22 N.m {1.9-2. 2 kgf.m, 14-16 ft.lbf}
Wipe off any ATF drips after tightening the overflow plug.
Lower the vehicle.
