Troubleshooting Procedure

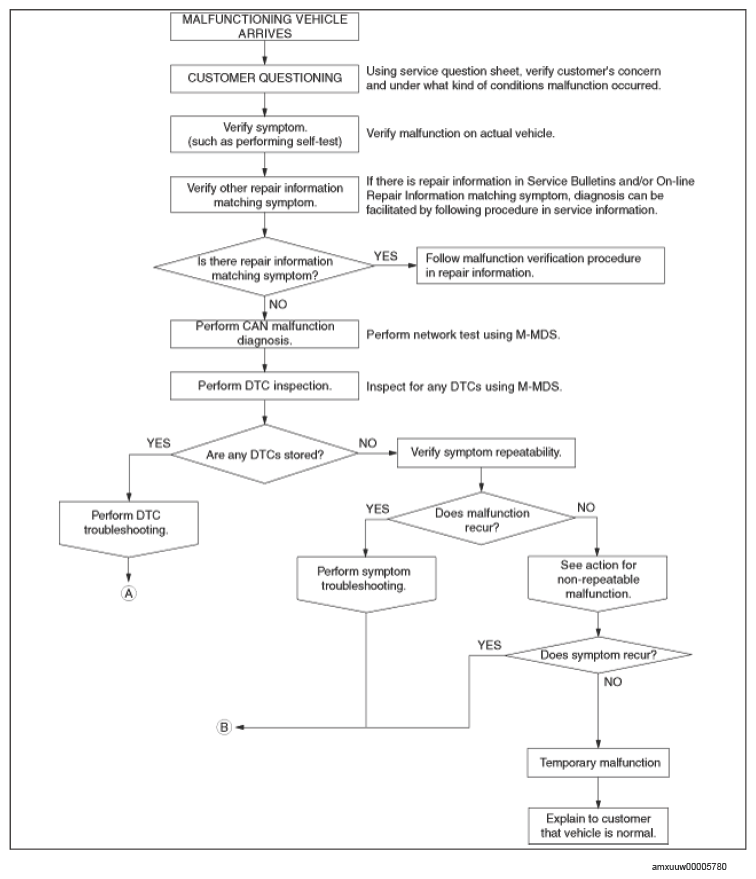

G14588897Courtesy of MAZDA MOTORS CORP.

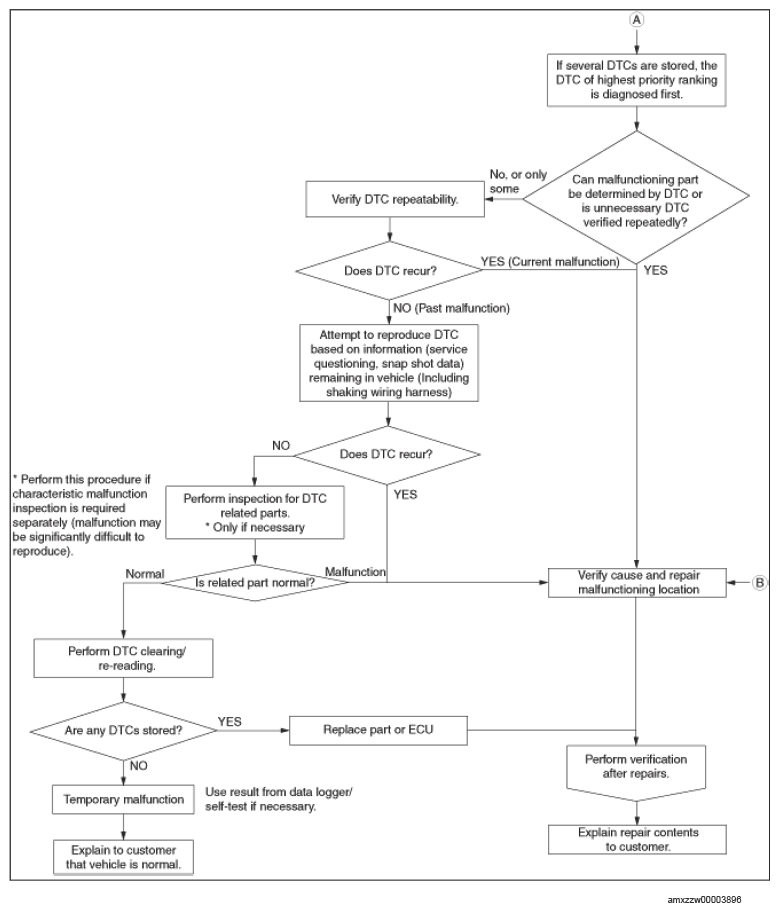

G14588898Courtesy of MAZDA MOTORS CORP.
