DTC U3000-63: EVP Control Unit - Long Period Of Operation [EVP Control Unit]: Notes

DTC U3000-63: (EVP CONTROL UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

DTC	U3000:63	EVP control unit: long period of operation
DETECTION CONDITION		The electric vacuum pump is used continuously for 180 s or more.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [EVP CONTROL UNIT] .)

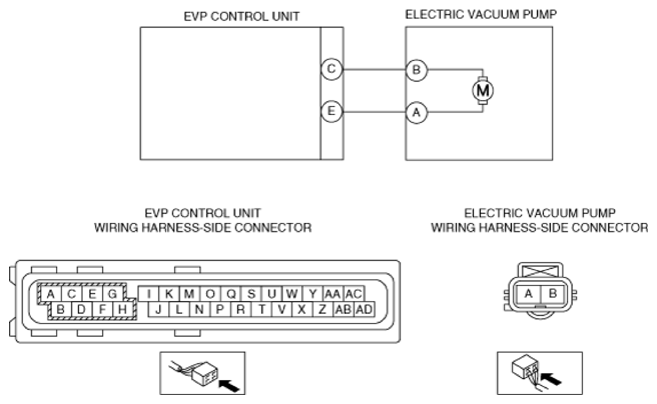

POSSIBLE CAUSE		Short to power supply circuit in wiring harness between electric vacuum pump terminal B and EVP control unit terminal C Short to ground circuit in wiring harness between electric vacuum pump terminal A and EVP control unit terminal E EVP control unit malfunction
Courtesy of MAZDA MOTORS CORP.
