DTC C1036-11: Electric Vacuum Pump Relay 2 - Short To Ground [EVP Control Unit]: Notes

DTC C1036-11: (EVP CONTROL UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C1036:11	Electric vacuum pump relay 2: short to ground
DETECTION CONDITION		EVP control unit terminal E voltage is less than 1 V for a continuous 0.5 s when electric vacuum pump relay 2 is turned off.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [EVP CONTROL UNIT] .)

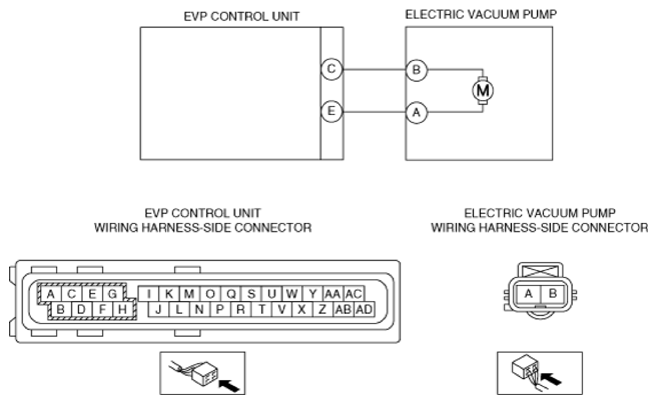

POSSIBLE CAUSE		Short to ground circuit in wiring harness between electric vacuum pump terminal A and EVP control unit terminal E Short to ground circuit in electric vacuum pump relay 2 circuit Electric vacuum pump relay 2 (built-into EVP control unit) stuck ON EVP control unit malfunction
Courtesy of MAZDA MOTORS CORP.
