DTC C101C-73: Electric Vacuum Pump - Short Circuit In Drive Circuit [EVP Control Unit]: Notes

DTC C101C-73: (EVP CONTROL UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C101C:73	Electric vacuum pump: short circuit in drive circuit
DETECTION CONDITION		Resistance of the electric vacuum pump drive circuit is less than 10 m ohm.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [EVP CONTROL UNIT] .)

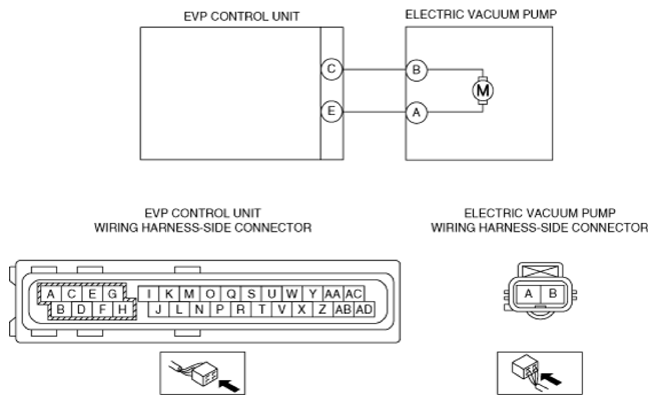

POSSIBLE CAUSE		Electric vacuum pump circuits are shorted to each other Electric vacuum pump terminal B and terminal A are shorted to each other Electric vacuum pump connector or terminals malfunction EVP control unit connector or terminals malfunction Electric vacuum pump malfunction EVP control unit malfunction
Courtesy of MAZDA MOTORS CORP.
