DTC C101C-18: Electric Vacuum Pump - Drive Current Decrease [EVP Control Unit]: Notes

DTC C101C-18: (EVP CONTROL UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C101C:18	Electric vacuum pump: drive current decrease
DETECTION CONDITION		Electric vacuum pump drive circuit electrical current is low for a continuous 3 s when the electric vacuum pump is operated.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [EVP CONTROL UNIT] .)

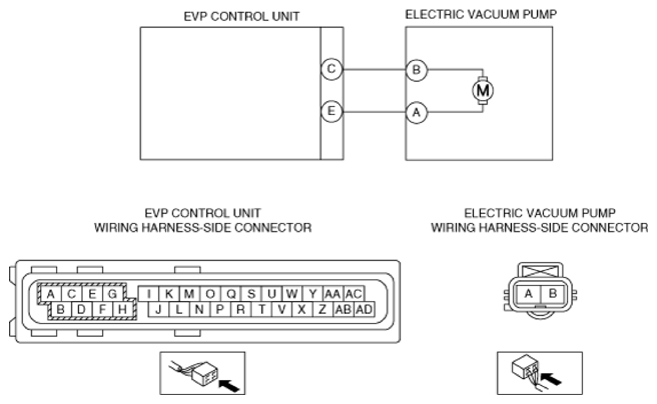

POSSIBLE CAUSE		Malfunctions (open circuit, connection malfunction) in the following wiring harnesses and connectors Electric vacuum pump terminal B-EVP control unit terminal C Electric vacuum pump terminal A-EVP control unit terminal E Electric vacuum pump malfunction EVP control unit malfunction
Courtesy of MAZDA MOTORS CORP.
