DTC C101C-00: Electric Vacuum Pump - Open Circuit In Drive Circuit [EVP Control Unit]: Notes

DTC C101C-00: (EVP CONTROL UNIT) DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C101C:00	Electric vacuum pump: open circuit in drive circuit
DETECTION CONDITION		An open circuit in the motor drive circuit of the electric vacuum pump occurs for a continuous 0.2 s when the electric vacuum pump is stopped.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [EVP CONTROL UNIT] .)

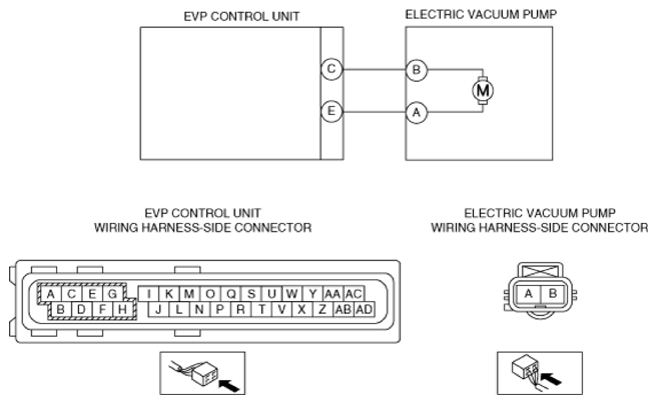

POSSIBLE CAUSE		Malfunctions (open circuit, connection malfunction) in the following wiring harnesses and connectors Open circuit in wiring harness between electric vacuum pump terminal B and EVP control unit terminal C Open circuit in wiring harness between electric vacuum pump terminal A and EVP control unit terminal E Electric vacuum pump malfunction EVP control unit malfunction
Courtesy of MAZDA MOTORS CORP.
