Washer Motor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)

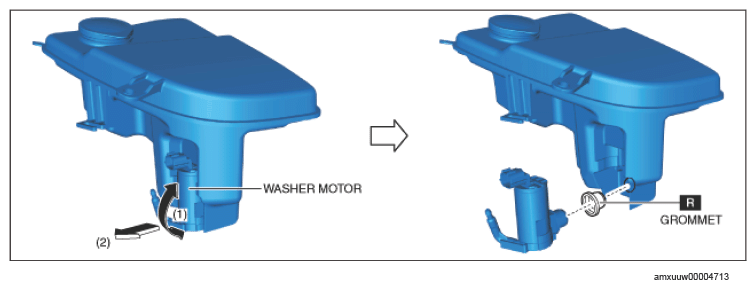

  3. While moving the washer motor in the direction of arrow (1) shown in the illustration, remove it in the direction of arrow (2).
    G14603261Courtesy of MAZDA MOTORS CORP.
  4. Remove the grommet.
  5. Install in the reverse order of removal.
