Front Side Marker Light Bulb Removal/Installation

Turn the steering wheel to the side where the bulb is to be removed until it locks.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Partially peel back the front mudguard No. 1 and front mudguard No. 2. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)

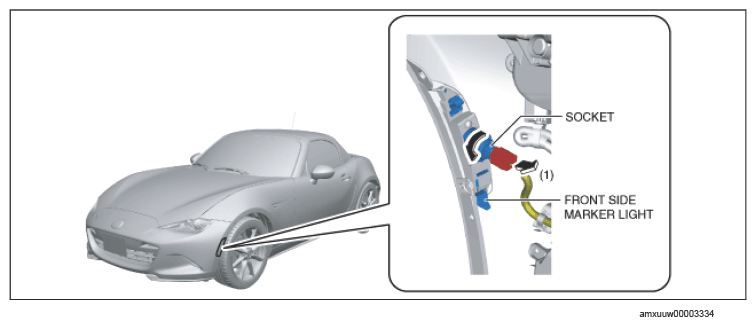

Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

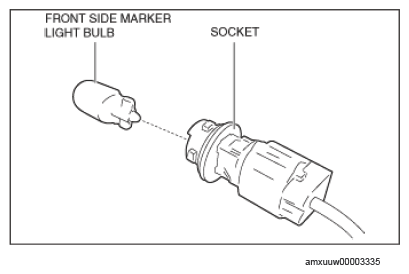

Remove the front side marker light bulb.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
