Back-Up Light Bulb Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

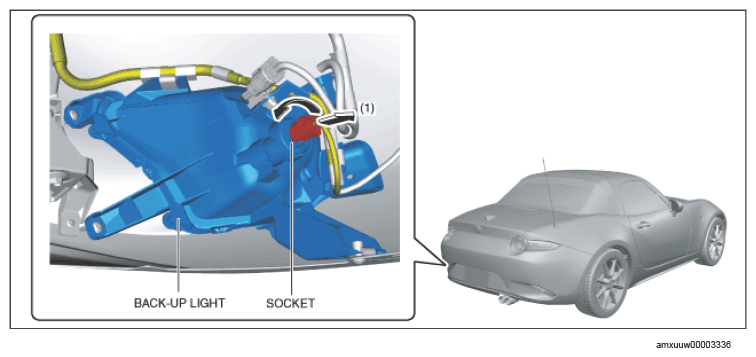

Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).
Remove the back-up light bulb.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
