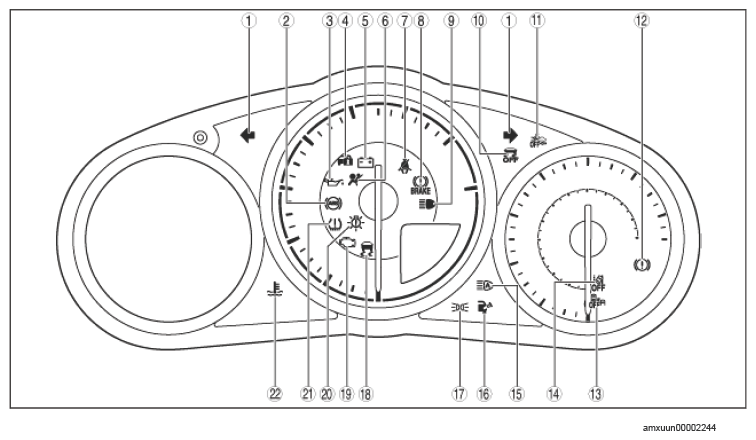

With Multi-Information Display

Courtesy of MAZDA MOTORS CORP.

x: Applicable-: Not applicable

No.	Warning light/Indicator light	Name	Message is displayed in center display when warning/indicator light turns on/flashes	Comment	Warning/indicator light turned on when ignition is switched ON (engine off or on)
1	Courtesy of MAZDA MOTORS CORP.	Turn signal/hazard warning indicator lights	-	-	-
2	Courtesy of MAZDA MOTORS CORP.	ABS warning light	x	-	x
3	Courtesy of MAZDA MOTORS CORP.	Engine oil warning light	x	-	x
4	Courtesy of MAZDA MOTORS CORP.	Security indicator light	-	-	x
5	Courtesy of MAZDA MOTORS CORP.	Charging system warning light	x	-	x
6	Courtesy of MAZDA MOTORS CORP.	Air bag/seat belt pre-tensioner system warning light	x	-	x
7	Courtesy of MAZDA MOTORS CORP.	Seat belt warning light	-	-	-
8	Courtesy of MAZDA MOTORS CORP.	Brake system warning light (red)	x	-	x
9	Courtesy of MAZDA MOTORS CORP.	Headlight high-beam indicator light	-	-	-
10	Courtesy of MAZDA MOTORS CORP.	DSC OFF indicator light	-	-	x
11	Courtesy of MAZDA MOTORS CORP.	Smart city brake support (SCBS) OFF indicator light	-	-	x
12	Courtesy of MAZDA MOTORS CORP.	Electric vacuum pump warning light (amber)	-	-	x
13	Courtesy of MAZDA MOTORS CORP.	Blind spot monitoring (BSM) OFF indicator light	-	With blind spot monitoring (BSM) system	x
14	Courtesy of MAZDA MOTORS CORP.	LDWS OFF indicator light	-	With lane departure warning system (LDWS)	x
15	Courtesy of MAZDA MOTORS CORP.	HBC indicator light (green)/HBC warning light (amber)	x	With high beam control (HBC) system	x
16	Courtesy of MAZDA MOTORS CORP.	Check fuel cap warning light	x	-	x
17	Courtesy of MAZDA MOTORS CORP.	Lights-on indicator light	-	-	-
18	Courtesy of MAZDA MOTORS CORP.	TCS/DSC indicator light	x	-	x
19	Courtesy of MAZDA MOTORS CORP.	Check engine light	x	-	x
20	Courtesy of MAZDA MOTORS CORP.	LED headlight warning light	x	-	x
21	Courtesy of MAZDA MOTORS CORP.	Tire pressure monitoring system warning light	x	With tire pressure monitoring system	x
22	Courtesy of MAZDA MOTORS CORP.	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	x	-	x
