Horn HI

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Partially peel back the front mudguard No. 1 (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

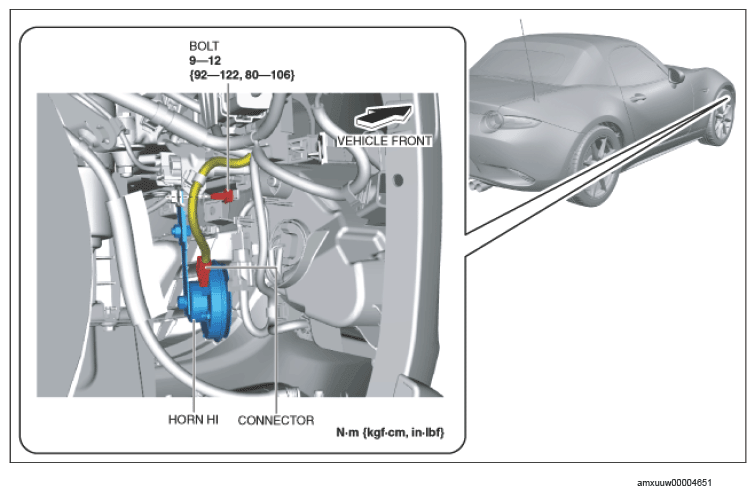

    Fig 1: Horn HI, Connector And Bolt With Torque Specification
    G14603464Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the horn HI.
  6. Install in the reverse order of removal.
