Horn HI

Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Partially peel back the front mudguard No. 1 (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
Remove the horn HI. (See HORN REMOVAL/INSTALLATION .)

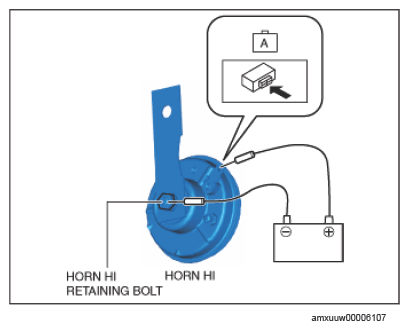

Connect the battery voltage to horn HI terminal A, and connect the ground to the horn HI retaining bolt.

Courtesy of MAZDA MOTORS CORP.
Verify that the horn HI sounds.
- If the horn HI does not sound, replace the horn HI. (See HORN REMOVAL/INSTALLATION .)
