DTC U2010-11: Illumination Output Circuit Malfunction [Electrical Supply Unit (ESU)]: Notes
DTC U2010-11: (ELECTRICAL SUPPLY UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Illumination output circuit malfunction |
| Detection condition |
- Electrical supply unit (ESU) detects a short to ground in the illumination output circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Electrical supply unit (ESU) connector or terminal malfunction
- Illuminations malfunction

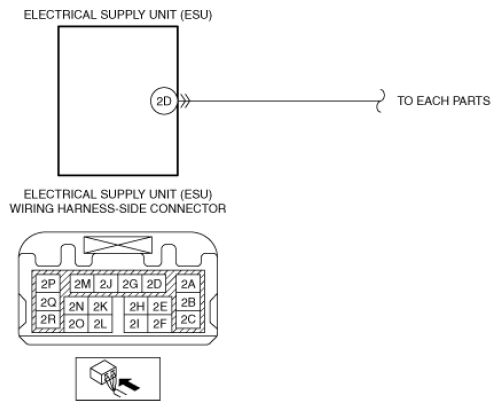

- Short to ground in electrical supply unit (ESU) illumination output circuit
- Electrical supply unit (ESU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
