DTC B1D02-11: Headlight Hi (LH) Circuit Malfunction [Electrical Supply Unit (ESU)]: Notes
DTC B1D02-11: (ELECTRICAL SUPPLY UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight HI (LH) circuit malfunction |
| Detection condition |
- Electrical supply unit (ESU) detects a short to ground in the headlight HI (LH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front combination light (LH) connector or terminal malfunction
- Electrical supply unit (ESU) connector or terminal malfunction

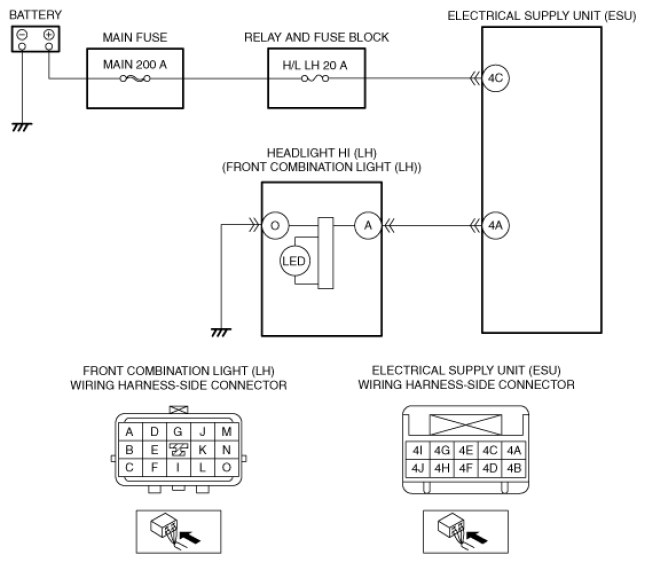

- Short to ground in wiring harness between front combination light (LH) terminal A and electrical supply unit (ESU) terminal 4A
- Front combination light (LH) malfunction
- Electrical supply unit (ESU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
