DTC B1D01-11: Headlight Lo (RH) Circuit Malfunction [Electrical Supply Unit (ESU)]: Notes
DTC B1D01-11: (ELECTRICAL SUPPLY UNIT) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight LO (RH) circuit malfunction |
| Detection condition |
- Electrical supply unit (ESU) detects a short to ground in the headlight LO (RH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front combination light (RH) connector or terminal malfunction
- Electrical supply unit (ESU) connector or terminal malfunction

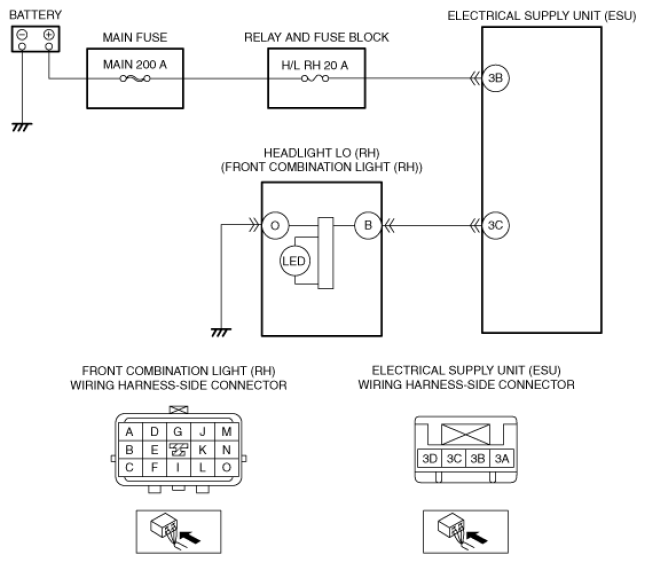

- Short to ground in wiring harness between front combination light (RH) terminal B and electrical supply unit (ESU) terminal 3C
- Front combination light (RH) malfunction
- Electrical supply unit (ESU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
