Horn LO

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  3. Disconnect the connector.

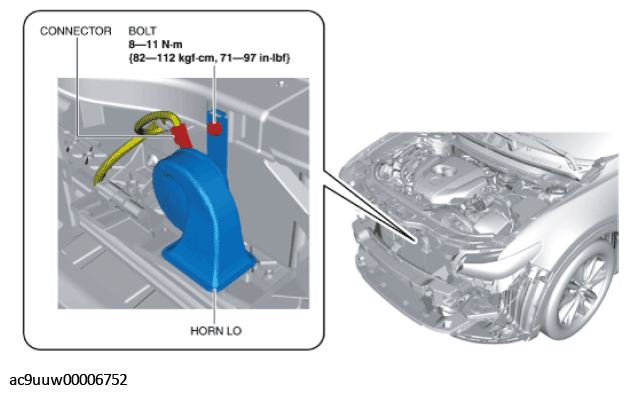

    Fig 1: Horn LO Bolt With Torque Specification
    G11434804Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the horn LO.
  6. Install in the reverse order of removal.
