Rear Oil Seal Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
Special Service Tool (SST)
| 49 S033 101 | |
| Dust cover installer |
Replacement Part
| Rear oil seal |
| Quantity: 1 |
| Location of use: Cylinder block |
Oil and Chemical Type
| Engine oil |
| Type: Recommended oil |
- Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] (AWD)).
- Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [FW6A-EL, FW6AX-EL] ).

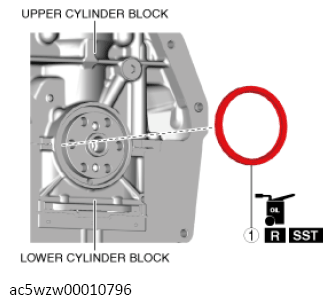

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
PART SPECIFICATION
| 1 | Rear oil seal (See Rear Oil Seal Removal Note ). (See Rear Oil Seal Installation Note ). |
