Plug Hole Plate Removal/Installation: Installation

WARNING: This page is about a different variant/trim than selected.

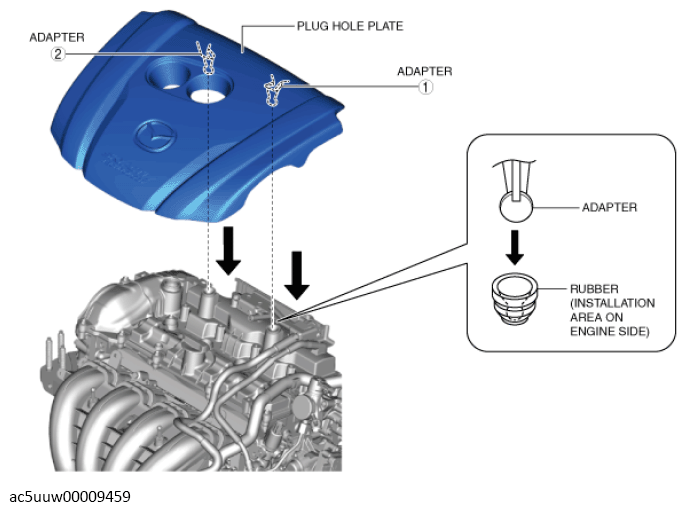

  1. Press the plug hole plate in the order shown in the figure to insert the adapter to the rubber on the engine side.
    G13107874Courtesy of MAZDA MOTORS CORP.

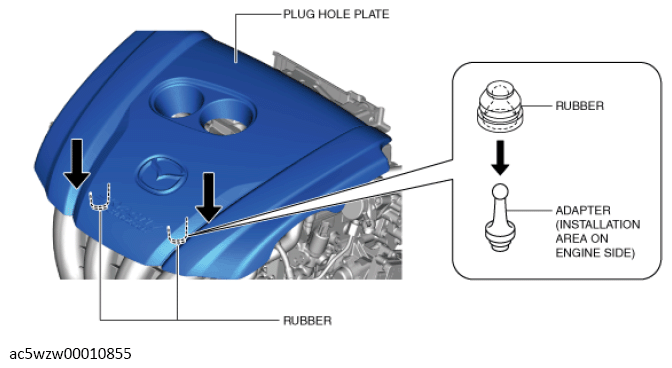

  2. Press the front part of the plug hole plate at the same time to insert the rubber to the adapter on the engine side.
G13107875Courtesy of MAZDA MOTORS CORP.
